Beehive Valve Springs: Top .943" O.D., .580" I.D.; Bottom 1.105" O.D., .742" I.D.
- $597.95 USD
- $597.95 USD
- Unit price
- per
Hurry up! only 4 left
Subtotal:
$597.95
$597.95
10 customers are viewing this product
Free Shipping over $999.99
Tracking typically updated within 1-2 business days
All returns are subject to a restocking fee
Learn More.
Typical delivery within 2-5 business days from time of order

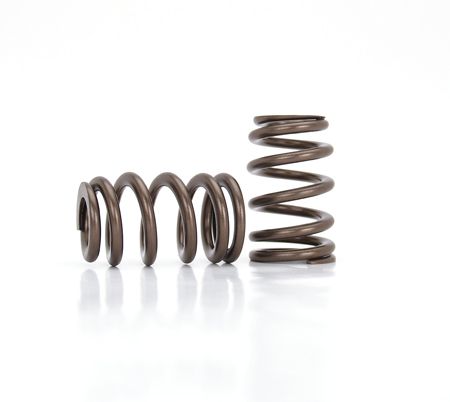

With a .500" maximum lift, these Beehive™ Valve Springs were designed for Ford 4.6L Modular 4 Valve engines. COMP Cams® Beehive™ Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive™ shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive™ design, the valve train can handle more RPM and more aggressive cam profiles.
Max Lift: 0.51
Installed Height: 1.47
Coil Bind Height: 0.9
O.D. of Outer: 0.943/1.105
I.D. of Outer: 0.742
Spring Style: Beehive
Spring Rate: 324
Seat Pressure: 89.52
Damper: No
